Fanatec Wheel Hub – Simplified Connectivity for Third-Party Steering Wheels
The Fanatec Wheel Hub is a streamlined and affordable solution designed for sim racers who want to connect third-party steering wheels to compatible Fanatec Direct Drive wheelbases. Built as a simplified version of the Podium Hub, it includes the essential electronics required to activate force feedback on supported Fanatec bases.
Perfect for custom builds and motorsport-inspired setups, the Fanatec Wheel Hub combines robust construction with Fanatec’s latest QR2 quick release technology.
Optimized for Third-Party Steering Wheels

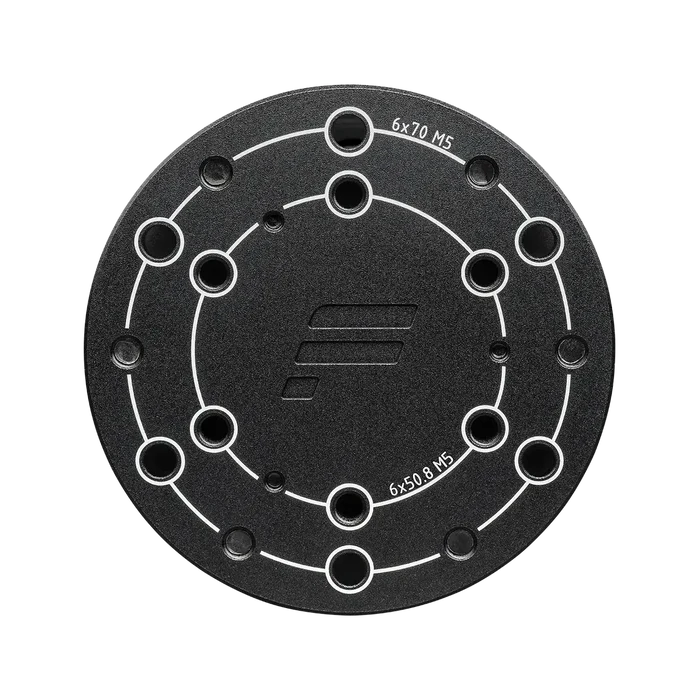

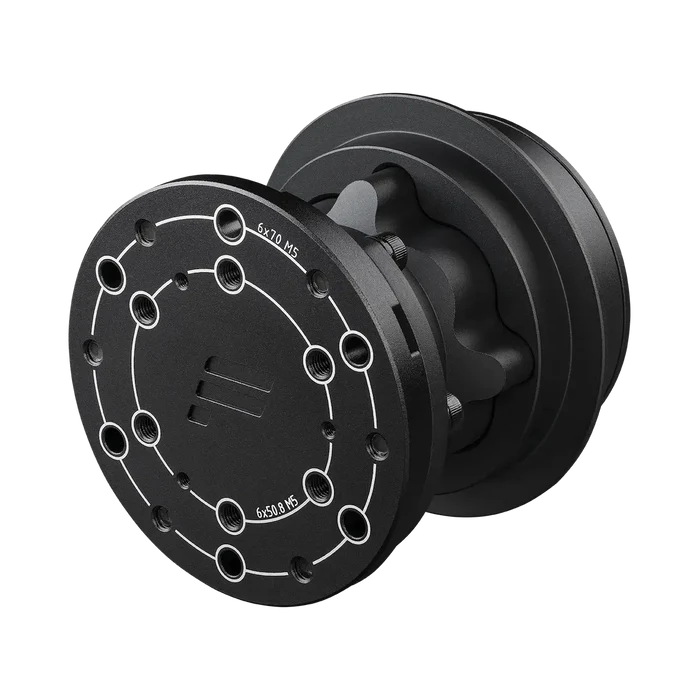

Designed specifically for aftermarket and custom steering wheels, the Fanatec Wheel Hub supports the two most common mounting standards:
- 6 x 70 mm bolt pattern
- 6 x 50.8 mm bolt pattern
This makes it compatible with a wide range of steering wheels from leading sim racing manufacturers.
Motorsport-Derived QR2 Quick Release

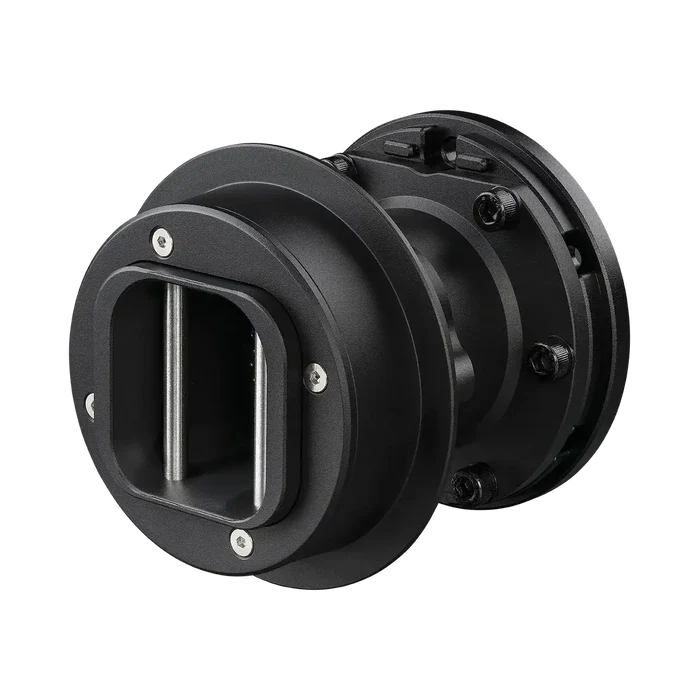

The preinstalled QR2 Wheel-Side delivers maximum rigidity and precision thanks to its full aluminum construction and motorsport-inspired mechanical design.
Benefits include:
- Rock-solid connection with minimal flex
- Improved durability and reliability
- Faster wheel changes
- Enhanced force feedback detail and consistency
The diecast aluminum body features a CNC-machined black anodized finish for a premium look and feel.
Key Features
- Simplified alternative to the Fanatec Podium Hub
- Enables force feedback on compatible Fanatec Direct Drive bases
- Ideal for third-party steering wheels
- Compatible with 70 mm and 50.8 mm mounting patterns
- Preinstalled QR2 Wheel-Side
- Full aluminum construction
- Motorsport-inspired quick release system
- CNC-machined and black anodized finish
Compatibility
Compatible Fanatec Wheel Bases
- CSL DD
- Gran Turismo DD Pro
- ClubSport DD / DD+
- Podium DD1 / DD2
- Podium DD1 PS4™
- Podium DD (2026)
Approved Steering Wheel Partners
- Ascher Racing
- BavarianSimTec
- VPG Sim
Compatible Fanatec Wheel Rims
Supports a wide range of Fanatec rims including:
- ClubSport Wheel Rim 320 / 320 Alcantara
- ClubSport Classic / Classic 2
- ClubSport Drift
- ClubSport GT / GT Alcantara / GT3
- ClubSport R330
- ClubSport Oval
- SPARCO® GT / Karting / Formula / Rally
- Podium R300
- Podium Porsche 911 GT3 Cup
- Podium NASCAR
The Wheel Hub also works with most USB steering wheels featuring a 70 mm or 50.8 mm bolt pattern.
Important Information
⚠ This product only enables the Fanatec wheelbase to detect an attached wheel and activate force feedback.
- It does not transfer USB data or provide power to the steering wheel
- USB steering wheels must still connect directly to the PC using their own cable
- Not compatible with Fanatec Button Modules, Button Clusters, or Paddle Modules
Platform Compatibility
- PC: Supported
- PlayStation: Not compatible
- Xbox: Not compatible
What’s Included
- Fanatec Wheel Hub
- QR2 Wheel-Side (preinstalled)
- 4 mm Allen key
- 3 mm Allen key
- 2x M5 strain reliever clips
- 6x M5 x 14 mm bolts
- 6x M5 x 14 mm countersunk bolts
- 6x M5 nuts
Why Choose the Fanatec Wheel Hub?
The Fanatec Wheel Hub is the ideal choice for sim racers using third-party steering wheels who want a clean, reliable, and cost-effective way to unlock force feedback on Fanatec Direct Drive systems. With robust QR2 technology and broad wheel compatibility, it’s the perfect foundation for custom sim racing setups.
